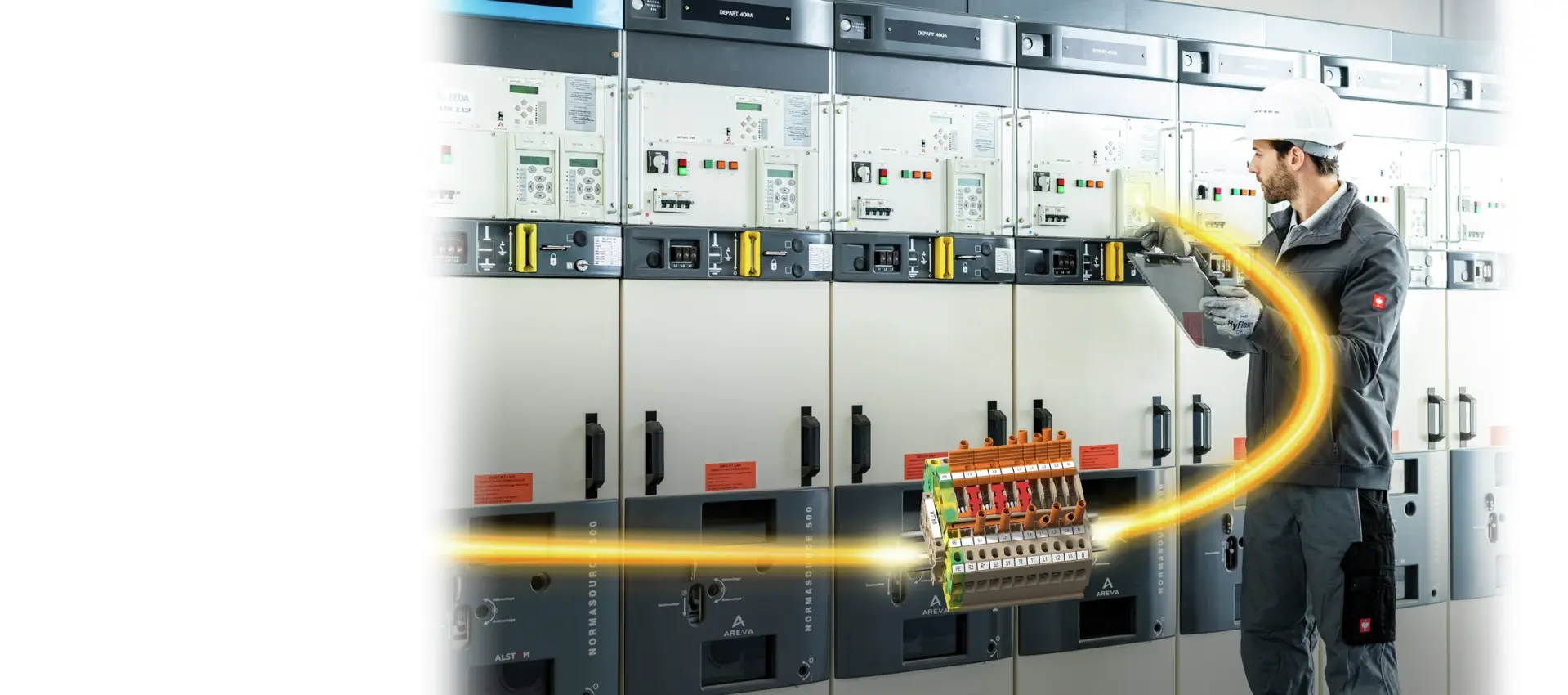

Simple, fast and safe wiring of current and voltage transformers

In T&D applications, current and voltage transformers are mainly used for protection and measurement functions. Our new TTB range of Klippon® Connect instrument transformer terminal blocks have been designed to meet allthe connection requirements of these two critical applications. The wiring of current and voltage transformers canbe carried out particularly easily and safely with the new terminal block series – even within complex circuits. Theprevention of operating errors during operation increases plant availability and extends the life cycle of the entirecontrol cabinet. Thus, the respective requirements of the end user are fulfilled to the highest degree.

Your benefits at a glance

Data-supported planning phase

Data-supported planning phase

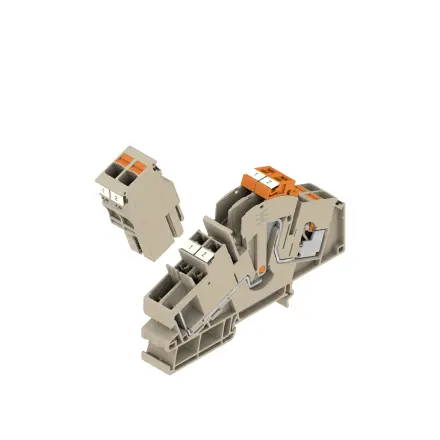

Simple selection of safety-relevant accessories and rational product configuration via Weidmueller configurator WMC.

Flexible installation phase

Flexible installation phase

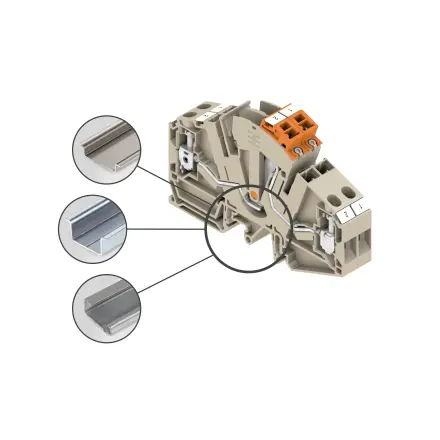

Dedicated cross-connection channel upstream and downstream the disconnect contact for maximum flexibility.

Safe operation phase

Safe operation phase

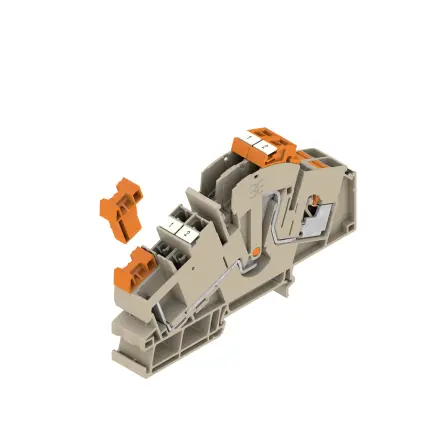

All function- and safety-relevant components are captively connected to the terminal block.

We offer a universal and extensive range of terminal blocks suited for almost every application. The consequent orientation of products and services to the customer´s processes allows to achieve noticeable productivity advantages

Davide Montaldo, Strategic Product Manager, ODTS

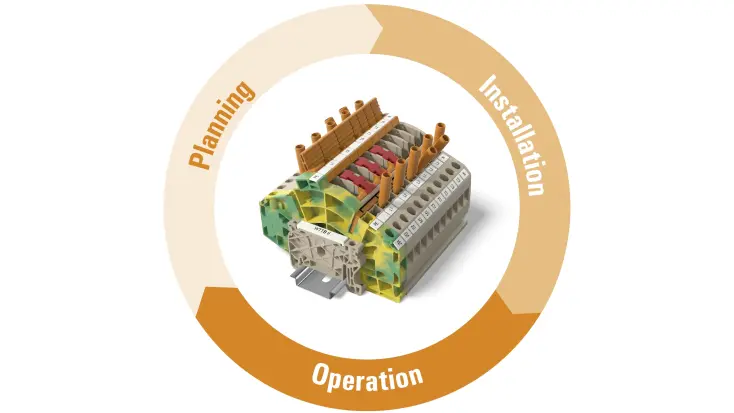

Unique features giving added values throughout the process

null

The planning phase is crucial for the success and cost-effectiveness of the entire panel building process, and requires the intelligent interplay of digital product data and interconnected engineering tools. Efficient, easy wiring is key to installation.

Our products stand out in this respect with their intuitive handling and clear design. All terminal functions can be distinguished from each other instantly.

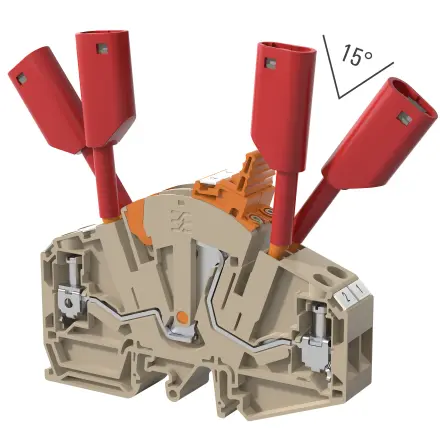

Our Klippon® Connect products feature standardised test points which make automated testing and checking processes possible. In this way, maintenance and testing tasks can be carried out much more safely and faster.

Our highlights with Klippon® Connect TTB Range

Reliable comparative measurement

Reliable comparative measurement

Reliable comparative measurement

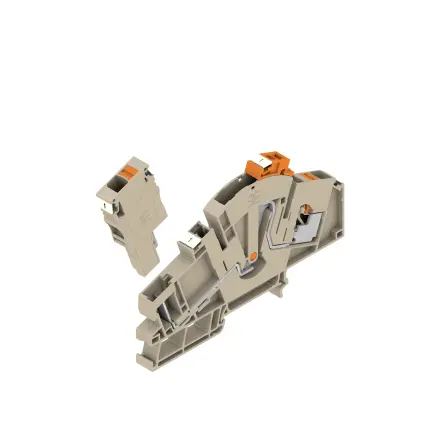

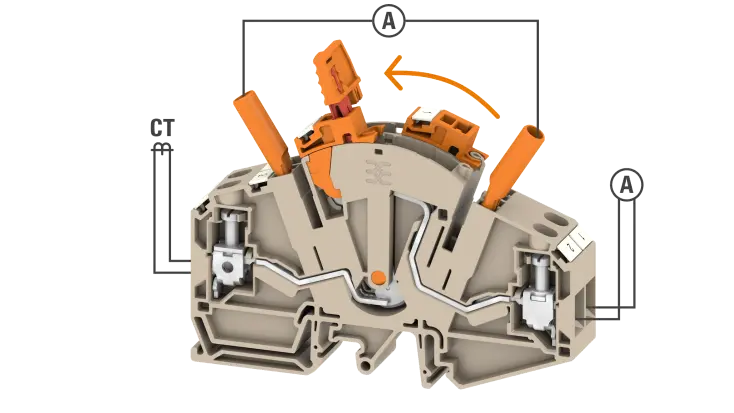

A patented CM (Comparative Measurement) lever link allows two terminal blocks to be selectively separated to connect a calibrated measuring device. After the measurement, the captive lever is returned to its original position, with the „make before break“ contact remaining active. This is a unique feature of the TTB range which guarantees maximum safety for personnel and asset preservation.

Enhanced safety cover hood system

Enhanced safety cover hood system

Enhanced safety cover hood system

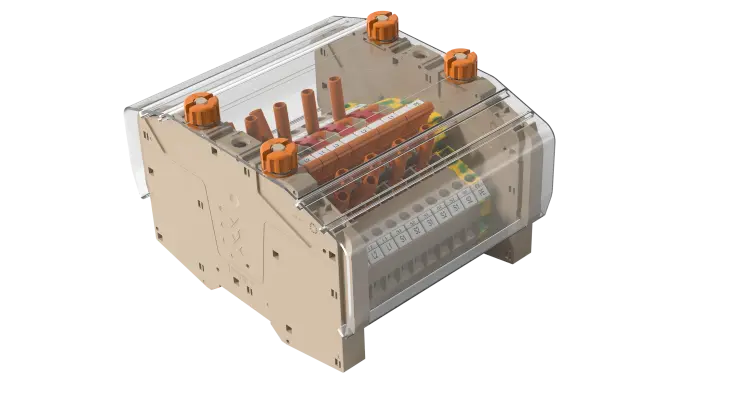

The transparent cover hood system protects and seals the entire assembly. It is available either as a full-length profile or as an individual cover. It can only be fixed when all connection components are in their initial position. The assembly is optimally protected against unauthorised access without impairing visual inspection.

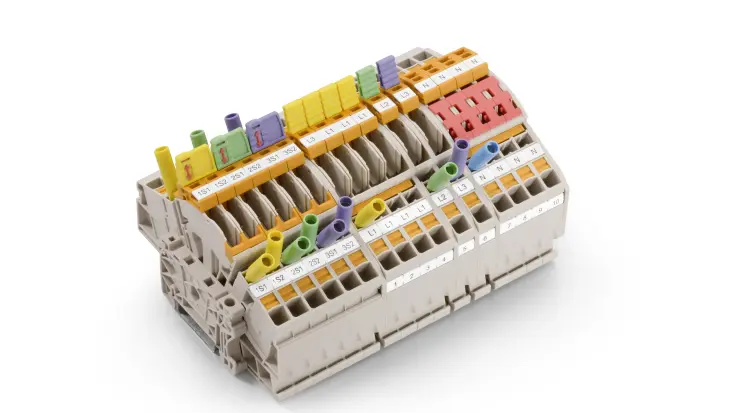

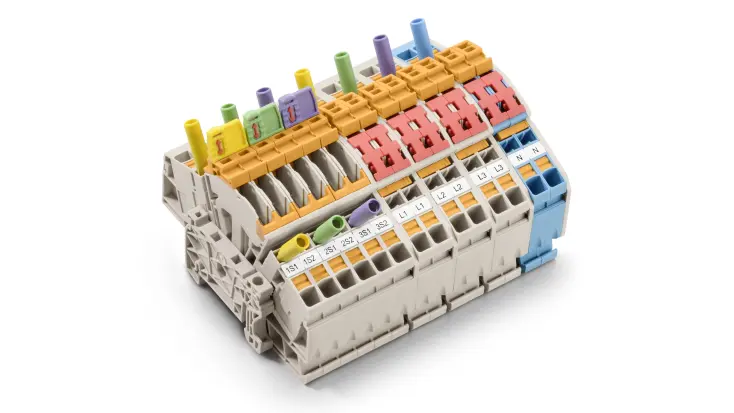

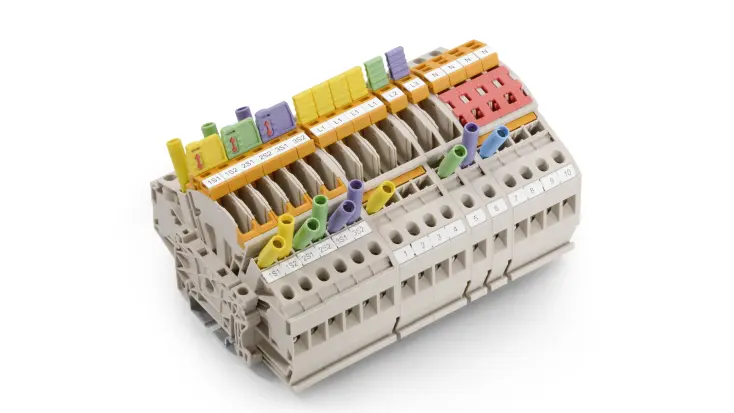

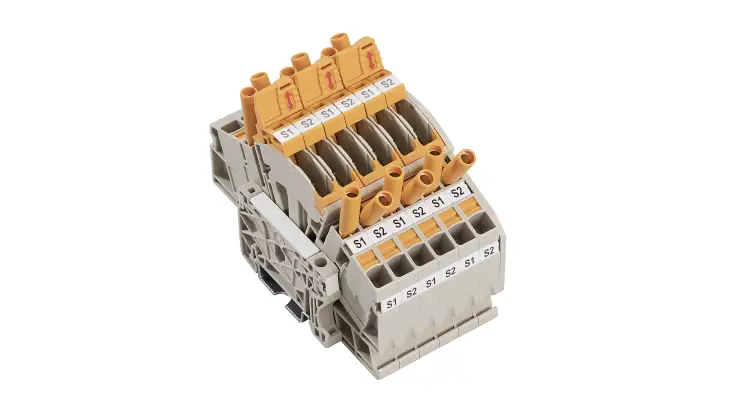

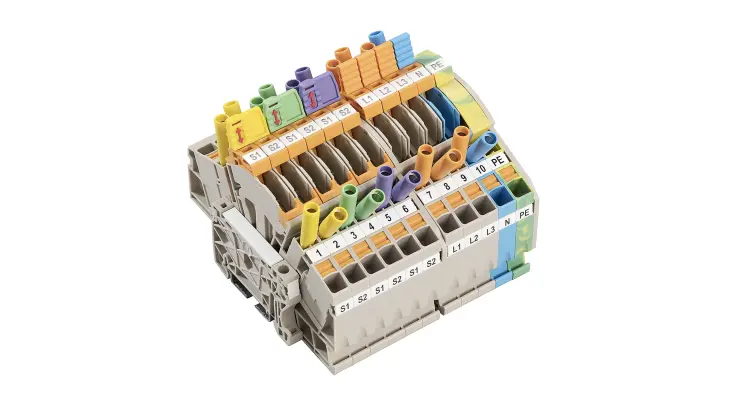

Klippon® Connect WTTB 6 terminal blocks for instrument transformer wiring

Klippon® Connect WTTB 6 terminal blocks for instrument transformer wiring
Simple, fast and safe wiring of current and voltage transformers In T&D applications, current and voltage transformers are mainly used for protection and measurement functions. Our new TTB range of Klippon® Connect instrument transformer terminal blocks have been designed to meet allthe connection requirements of these two critical applications. The wiring of current and voltage transformers canbe carried out particularly easily and safely with the new terminal block series – even within complex circuits. Theprevention of operating errors during operation increases plant availability and extends the life cycle of the entirecontrol cabinet. Thus, the respective requirements of the end user are fulfilled to the highest degree.
