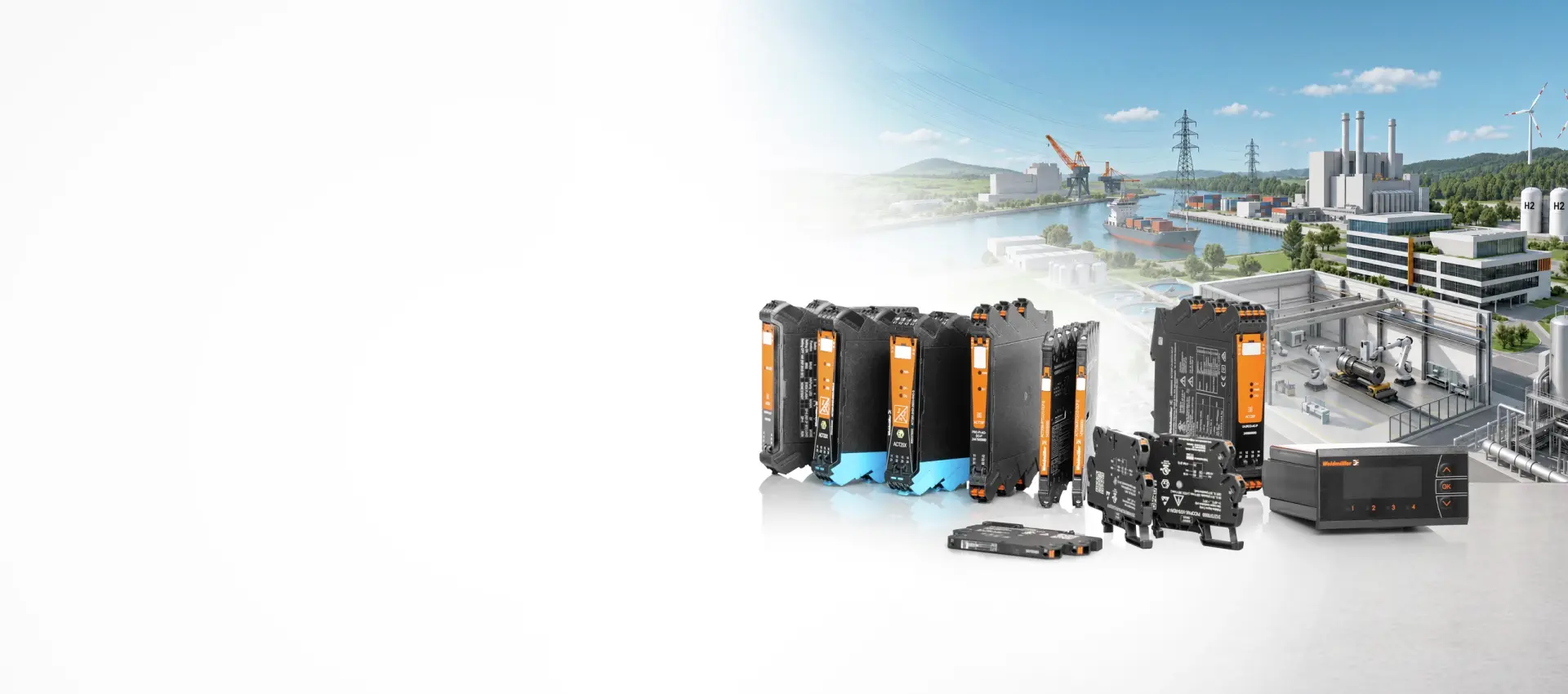

Perfect for your signal conversion: our ACT20 series

Reliable

Reliable

Reliable and accurate signal protection, conversion and isolation: your analogue signal is in safe hands with Weidmüller's ACT20 series

Suitable for all applications

Suitable for all applications

By offering a slim or a flat design, our components fit in perfectly with your application surroundings.

Quick and easy configurability

Quick and easy configurability

You can configure the ACT20 with software, integrated display or dip switches.

Our product range for analogue signal processing

ACT20D: Always have an eye on your signals

ACT20D process value displays – easy and flexible to use

  • Internationally applicable due to UL and DNV approvals
  • Wide operating temperature range from -20 °C to +60 °C
  • Easy installation and parameterisation
  • Field use due to IP65 protection and optional protective cover

ACT20C: the connective

A communication interface sends the data to the control center.

  • FDT/DTM software via Ethernet for configuration
  • Station with plug-and-produce function
  • Ethernet uplink: Modbus TCP

ACT20X: intrinsically safe

Safe signal conversion with standards of the process industry

  • Isolation and conversion of intrinsically safe signals
  • Meets strict process industry standards (Ex zones 0, 1, 2) with SIL
  • HART-transparent

ACT20P: multifaceted

Ideally suited for the wide range of practical requirements

  • More precise and particularly functional
  • Configuration via display, FDT/DTM software or DIP switches
  • Encoded connector plugs prevent incorrect plugging

ACT20M: the slim

  • Configuration via DIP switches or FDT/DTM software
  • Extensive approvals, e.g. ATEX, IECEX, GL, DNV
  • supply via the CH20M DIN rail bus

MCZ: the sonny

Terminal block sized analogue signal conditioner

  • Signal converter in terminal format
  • Overall width of 6 mm

PicoPak – the smallest standard signal isolator

  • Loop powered to isolate active field sensors
  • Measuring range and zero point calibration via potentiometer
  • Temperature range from -40 °C to +70 °C

Accessories for analog signal processing

configuration adapter

Weidmüller Configurator

Our Weidmüller Configurator is a software application you can download with just one click to configure your equipment or control cabinet. You can easily assemble your switch mode power supplies and order your customised product directly from the application.

CH20M DIN rail bus

  • Supplies the devices via the bus
  • Backup supply with error detection possible

Services for analog signal processing

Weidmüller Configurator

Our Weidmüller Configurator is a software application you can download with just one click to configure your equipment or control cabinet. You can easily assemble your switch mode power supplies and order your customised product directly from the application.

Configuration software

  • With FDT2 technology
  • WI-Manager software as a framework application
  • Free

Digital data

  • CAD data -- STEP
  • EPLAN, WSCAD
  • Cax data

Benefit from Weidmüller's service and market experience in the field of analog signal processing

Simple planning through software support

Simple planning through software support

Use the Weidmüller Configurator to quickly and easily configure and request our components. The tool supports continuous engineering workflows from planning with E-CAD systems through to documentation.

Orange Selection

Orange Selection

Products of the Orange Selection are available at any time. If your order is received by 3 p.m., your items will already be on their way the following day.

Time-saving data provision

Time-saving data provision

CAD 3D models in various formats and CAE data are available for download in our product catalogue .

Electronic product data for our distribution partners

Electronic product data for our distribution partners

Electronic catalogue in BMECat format and other formats. Fast access to article data thanks to proven standards.

Market & industry experience

Market & industry experience

We speak the language of our customers. With expertise and passion for the various industries.

To our industry overview
